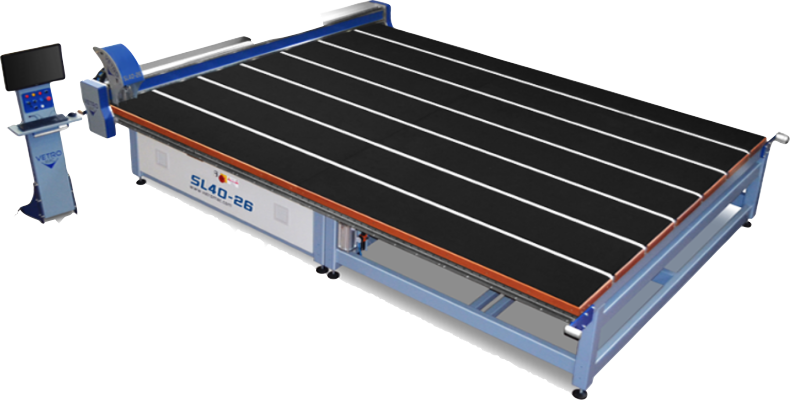

SL40-26 Technical data - similar for other sizes
Max. workable glass sheet mm. 4000 x 2600 (157.4” x 102.3”).
Workable thickness From 2 to 19 mm (1/16 to 3/4 in). Machine can cut every kind of glass (except tempered). Weight Kg. 1600 (3527 lb) Work surface height: Adjstable from 890 to 960 mm (34.65 to 38.19 in) Maximum installed power Kw 8 Accuracy: Max. difference in length between two diagonals for an area bigger than 2mq (21.528 sq.ft.) (glass 3 mm thick) (1.118 in.) +/-0.20 mm (0.0196 in) Rectilinearity tolerance (glass 3 mm thick) (1.118 in.) +/- 0.15 mm (straight cutting) +/-0.20 mm ( shape cutting). Performance: Maximum speed of the bridge and cutting head 180m/min (590 ft/min) Max. acceleration 0.6 sec. from 0 to max. speed Max. deceleration 0.6 sec. From max. speed to 0 Equipped with: Control panel with incorporated independent Industrial Computer WiFi and 21" Touch Screen , software packet with optimization program developed in Multitasking systems with 250 parametric preconstructed shapes, user graphic interface for the managing of the cutting cycle and machine monitoring , security systems following the laws, handbook in English.. Safety of the glass presence: A sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets Management of mechanisms: Immediate and controlled braking of the bridge and the cutting head, as soon as an emergency occurs.
Pickering, ON Canada
+1-416-342-7547
+1-647-669-5430
sales@atwoodsales.com
http://www.atwoodsales.com
Mobile Glass Handling Solutions
Glass Storage, Dollies, Other
CNC Glass Cutting Tables
Glass Fabrication Machines
Quick Change
Wheel System
SL40-26 *
Max. workable sheet size mm 4000 x 2600
inches 157.4” x 102.3” * Other sizes available

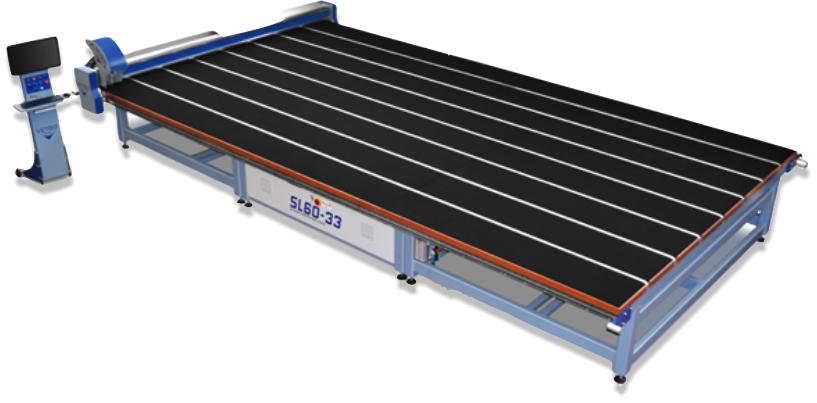

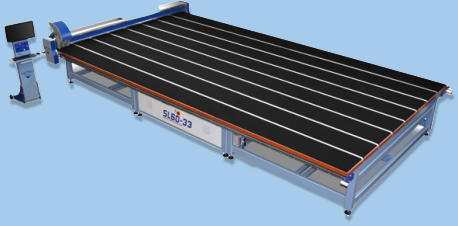

SL60-33 Technical data
Max. workable glass sheet mm. 6100 x 3300 (236” x 129.9”).
Workable thickness From 2 to 19 mm (1/16 to 3/4 in). Machine can cut every kind of glass (except tempered). Weight Kg. 3200 (7055 lb) Work surface height: Adjstable from 890 to 960 mm (34.65 to 38.19 in) Maximum installed power Kw 12 Accuracy: Max. difference in length between two diagonals for an area bigger than 2mq (21.528 sq.ft.) (glass 3 mm thick) (1.118 in.) +/-0.20 mm (0.0196 in) Rectilinearity tolerance (glass 3 mm thick) (1.118 in.) +/- 0.15 mm (straight cutting) +/-0.20 mm ( shape cutting). Performance: Maximum speed of the bridge and cutting head 220m/min (721 ft/min) Max. acceleration 0.6 sec. from 0 to max. speed Max. deceleration 0.6 sec. From max. speed to 0 Equipped with: Control panel with incorporated independent Industrial Computer WiFi and 21" Touch Screen , software packet with optimization program developed in Multitasking systems with 250 parametric preconstructed shapes, user graphic interface for the managing of the cutting cycle and machine monitoring , security systems following the laws, handbook in English.. Safety of the glass presence: A sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets Management of mechanisms: Immediate and controlled braking of the bridge and the cutting head, as soon as an emergency occurs.SL 60-33-Jumbo Cutting
Max. workable sheet size mm 6000 x 3300
inches 236” x 129.9”
Layout SL60-33
Layout SL40-26
Layout SL42-26
Layout SL42-28
Welcome to cncGlassCuttingMachines.com
Options
Edge Deletion for Soft Coat Low E Glass- with 125mm brush for production shops.
Edge Deletion for Soft Coat Low E Glass- with 20mm brush for lower volume shops.
Additional Options:
• Vinyl Film Cutting • Import DXF’s and XLS Files • Label Printer at Table PC • Extra Optimization Licences • Air Floatation • Fixed Stops
User Interface:
Multitasking systems, control of three
interpolated axles, easy-to-use, with icons
and buttons of the relevant command, with
Computer WiFi and 21" Touch Screen.
Optimisation program: Opty-Way or
PerfectCut Optimization software. Includes a
250 parametric shapes library, import/export
data.
SL40-26 Technical data
- similar for other sizes
Max. workable glass sheet mm.
4000 x 2600 (157.4” x 102.3”).
Workable thickness From 2 to 19 mm (1/16 to 3/4 in). Machine can cut every kind of glass (except tempered). Weight Kg. 1600 (3527 lb) Work surface height: Adjstable from 890 to 960 mm (34.65 to 38.19 in) Maximum installed power Kw 8 Accuracy: Max. difference in length between two diagonals for an area bigger than 2mq (21.528 sq.ft.) (glass 3 mm thick) (1.118 in.) +/-0.20 mm (0.0196 in) Rectilinearity tolerance (glass 3 mm thick) (1.118 in.) +/- 0.15 mm (straight cutting) +/-0.20 mm ( shape cutting). Performance: Maximum speed of the bridge and cutting head 180m/min (590 ft/min) Max. acceleration 0.6 sec. from 0 to max. speed Max. deceleration 0.6 sec. From max. speed to 0 Equipped with: Control panel with incorporated independent Industrial Computer WiFi and 21" Touch Screen , software packet with optimization program developed in Multitasking systems with 250 parametric preconstructed shapes, user graphic interface for the managing of the cutting cycle and machine monitoring , security systems following the laws, handbook in English.. Safety of the glass presence: A sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets Management of mechanisms: Immediate and controlled braking of the bridge and the cutting head, as soon as an emergency occurs.
Pickering, ON Canada
+1-416-342-7547
+1-647-669-5430
sales@atwoodsales.com
http://www.atwoodsales.com
Mobile Glass Handling Solutions
Glass Storage, Dollies, Other
CNC Glass Cutting Tables
Glass Fabrication Machines
Quick Change
Wheel System
SL40-26 *
Max. workable sheet size mm 4000 x 2600
inches 157.4” x 102.3” * Other sizes available
SL60-33 Technical
data
Max. workable glass sheet mm.
6100 x 3300 (236” x 129.9”).
Workable thickness From 2 to 19 mm (1/16 to 3/4 in). Machine can cut every kind of glass (except tempered). Weight Kg. 3200 (7055 lb) Work surface height: Adjstable from 890 to 960 mm (34.65 to 38.19 in) Maximum installed power Kw 12 Accuracy: Max. difference in length between two diagonals for an area bigger than 2mq (21.528 sq.ft.) (glass 3 mm thick) (1.118 in.) +/-0.20 mm (0.0196 in) Rectilinearity tolerance (glass 3 mm thick) (1.118 in.) +/- 0.15 mm (straight cutting) +/-0.20 mm ( shape cutting). Performance: Maximum speed of the bridge and cutting head 220m/min (721 ft/min) Max. acceleration 0.6 sec. from 0 to max. speed Max. deceleration 0.6 sec. From max. speed to 0 Equipped with: Control panel with incorporated independent Industrial Computer WiFi and 21" Touch Screen , software packet with optimization program developed in Multitasking systems with 250 parametric preconstructed shapes, user graphic interface for the managing of the cutting cycle and machine monitoring , security systems following the laws, handbook in English.. Safety of the glass presence: A sensor is placed on the cutting head, to stop the machine in case of lack of glass sheets Management of mechanisms: Immediate and controlled braking of the bridge and the cutting head, as soon as an emergency occurs.SL 60-33-Jumbo Cutting
Max. workable sheet size mm 6000 x 3300
inches 236” x 129.9”
Layout SL60-33
Layout SL40-26
Layout SL42-26
Layout SL42-28
Options
Edge Deletion for Soft Coat Low E Glass- with
125mm brush for production shops.
Edge Deletion for Soft Coat Low E Glass- with
20mm brush for lower volume shops.
Additional Options:
• Vinyl Film Cutting • Import DXF’s and XLS Files • Label Printer at Table PC • Extra Optimization Licences • Air Floatation • Fixed Stops
User Interface:
Multitasking systems, control of three
interpolated axles, easy-to-use, with icons
and buttons of the relevant command, with
Computer WiFi and 21" Touch Screen.
Optimisation program: Opty-Way or
PerfectCut Optimization software. Includes a
250 parametric shapes library, import/export
data.
